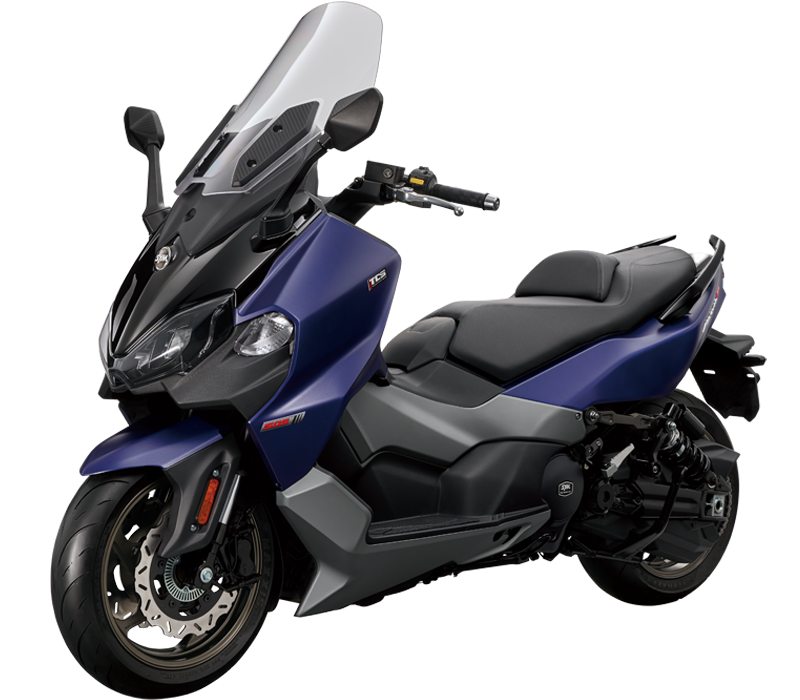

Indigo Blue

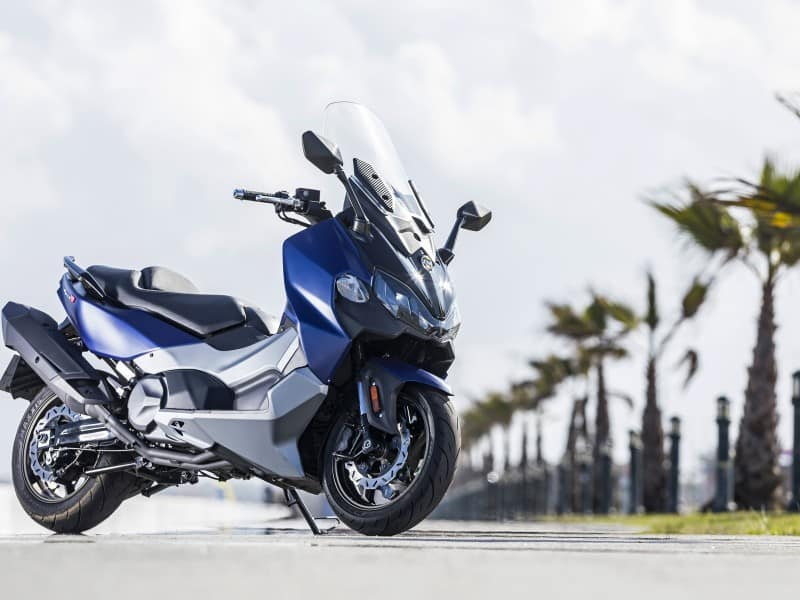

As SYM next-gen flagship Maxi Scooter, MAXSYM TL embraces outstanding motorcycle handling and unbelievable scooter convenience in one body. Nothing needs to be sacrificed due to the perfect art of fusion. It features motorbike-type engine mounting, great dynamic performance and futuristic sports apparel. Perfect body configuration such as 50/50 weight distribution, shortened wheelbase and single-sided multi-link rear suspension ensure TL delivering excellent handling performance. With sports apparel and compact body size, need no complex decoration, the TL simply presents its concise, aggressive and toughness.
| Specification | Details |
|---|---|
| Name | MAXSYM TL 508 |
| SRP (Prices may vary depending on the area.) |
₱ 469,900 |
| Curb Weight | 227 kg |
| Fuel Capacity | 12 LITERS |
| Specification | Details |
|---|---|
| Length x Width x Height (mm) | 2215 x 800 x 1442 mm |
| Wheel Base (mm) | 1543 mm |
| Ground Clearance | 110 MM |
| Fuel Capacity | 12.5 L |
| Seat Height (mm) | 795 mm |
| Specification | Details |
|---|---|
| Front Suspension | UPSIDE - DOWN FORK |

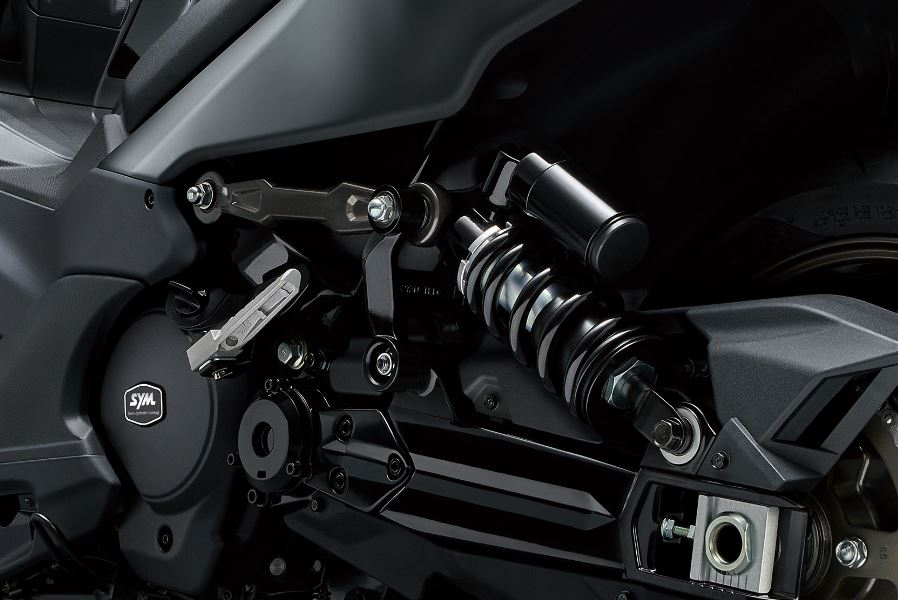

| Rear Suspension | SINGLE-SIDED MONO-SHOCKWITH MULTI-LINK |
| Front/Rear Rim Material | ALUMINUM / ALUMINUM |
| Front Tire Dimensions | 120 / 70 R15 |
| Rear Tire Dimensions | 160 / 60 R15 |

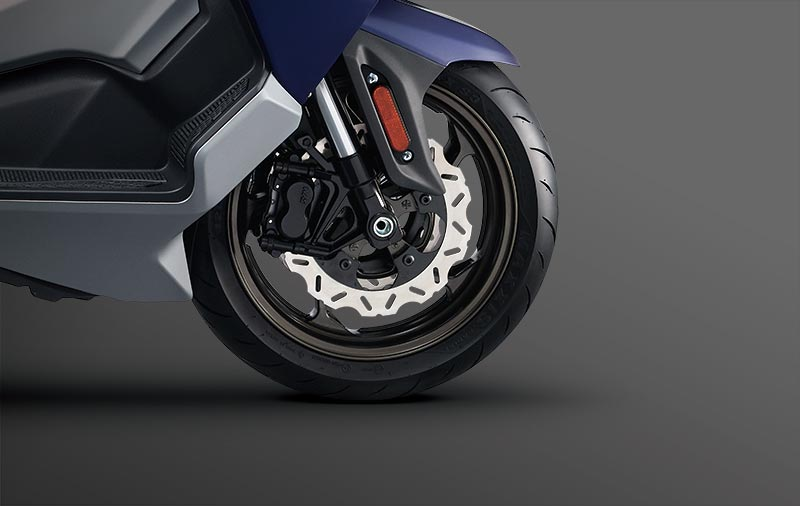

| Front Brakes Type / Diameter | DISC 275*2 + ABS |
| Rear Brakes Type / Diameter | DISC 275 + ABS |
| Specification | Details |
|---|---|
| Emission Standard | EURO 5 |
| Engine Type/Cylinder | 4-STROKE - ENGINE, INCLINE WITH TWIN CYLINDER |
| Displacement | 508 c.c. |
| Fuel System | E.F.I. |
| Max. Horsepower | 33.5 Kw / 6750 rpm |
| Max. Torque | 49.9 Nm / 5250 rpm |
| Max. Speed | 139 km/h |
| Cooling System | Liquid |
| Transmission | C.V.T. |
| Specification | Details |
|---|---|
| Starting System | ELECTRIC STARTER |

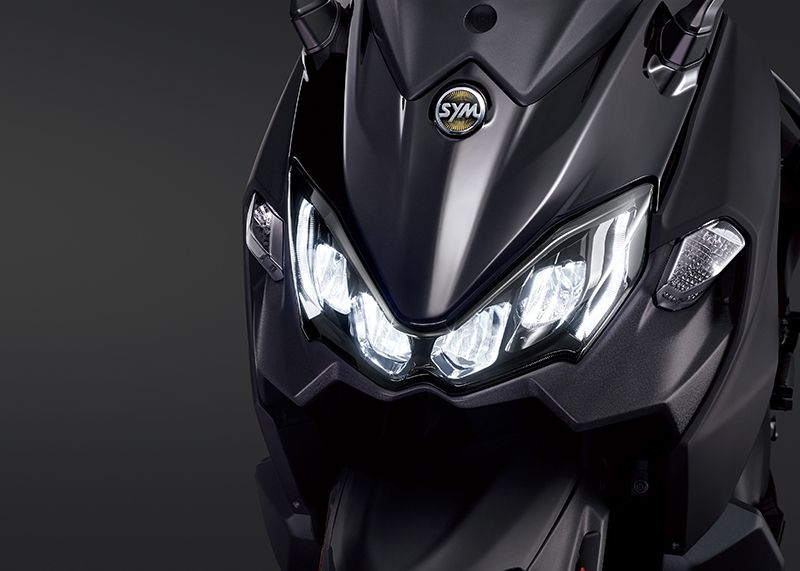

| Headlight | LED X2 |
| Taillight | LED X1 |
| Front Position Lamp | LED X2 |
| Front/Rear Turning Signal Light | LED X2 / LED X2 |
